Key features:-
- Intelligent, Sophisticated, software-operated NPWT system with Irrigation.
- 7-inch touch screen with night mode facility to minimize disturbance to the patient.
- Microprocessor-controlled System for enhanced accuracy, Maintaining target Negative pressure even during Patient movement.
- The digital wound image feature allows healthcare professionals to measure and calculate wound area, which helps with wound progress assessment.
- Provide aseptic delivery of volumetrically controlled wound irrigation solution at the wound site.

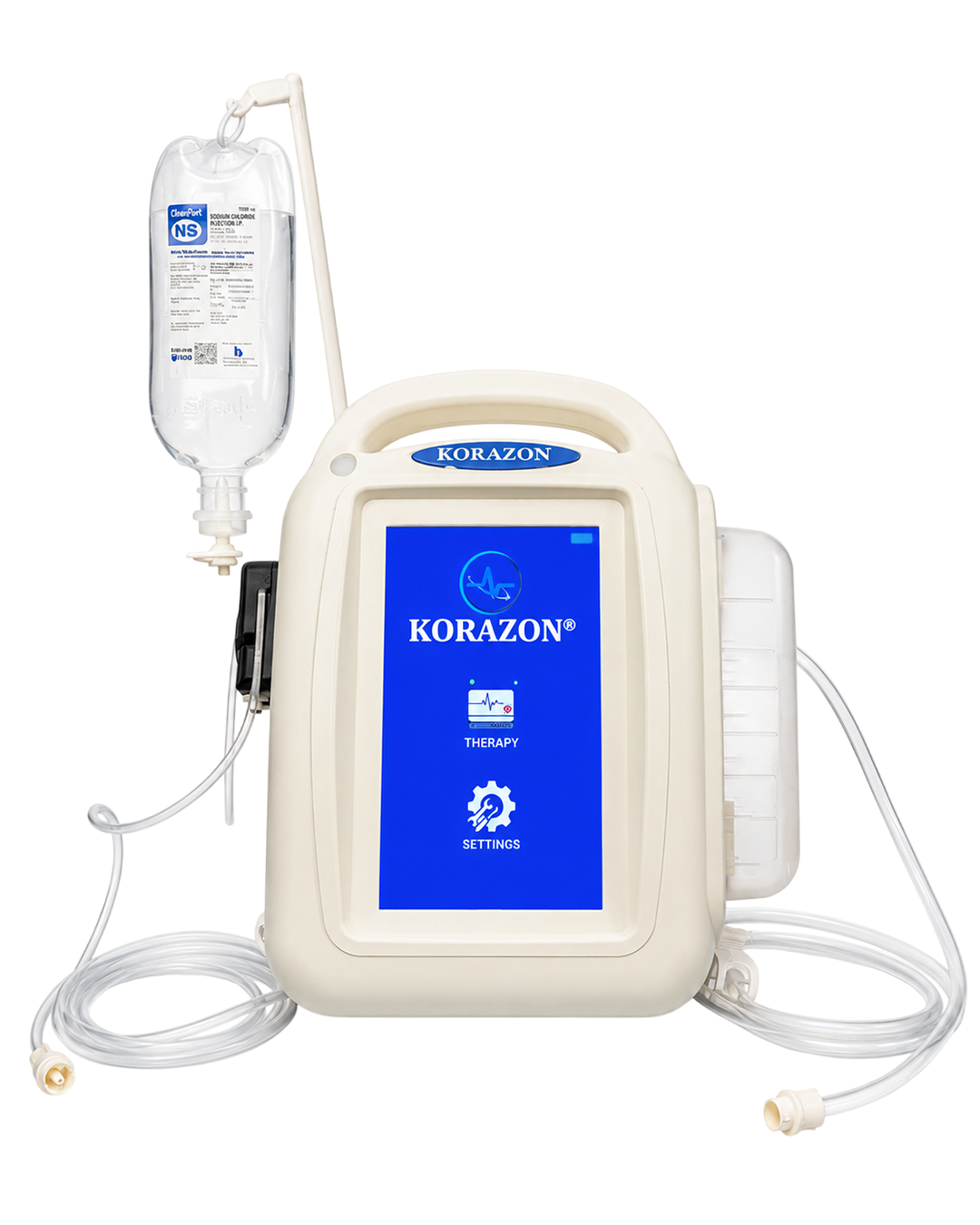

VacZon 2.2 – NPWT System
Negative Pressure Wound Therapy System-I is indicated for use on chronic, acute, traumatic, sub-acute, and dehisced wounds, diabetic ulcers, pressure ulcers, skin flaps, and grafts.
Smart Settings:-
- Pressure – (-40 to -240 mmHg)
- Instillation / Irrigation Solution Volume (in ml).
- Soak time (in Min)
- NPWT Cycle time (an hour)
- Pump Intensity
Alarms:-
- Pressure leakage
- Blockage
- Canister full
- Canister (installation) error
- Irrigation error
- Low battery
- Battery runtime > 20 hours
- Compatible with 300 ml, 500 ml, and 1000 ml, disposable canisters with Bacteria filter and solidifying agent.
- Weight – 4.9 lbs (2.2kg)
- Power Adaptor – Input 110/220 VAC, Output 12VDC/5 Amp
- Noise level < 30 db
- Virtually silent operation
- USB port for downloading/uploading Patient data and wound images.

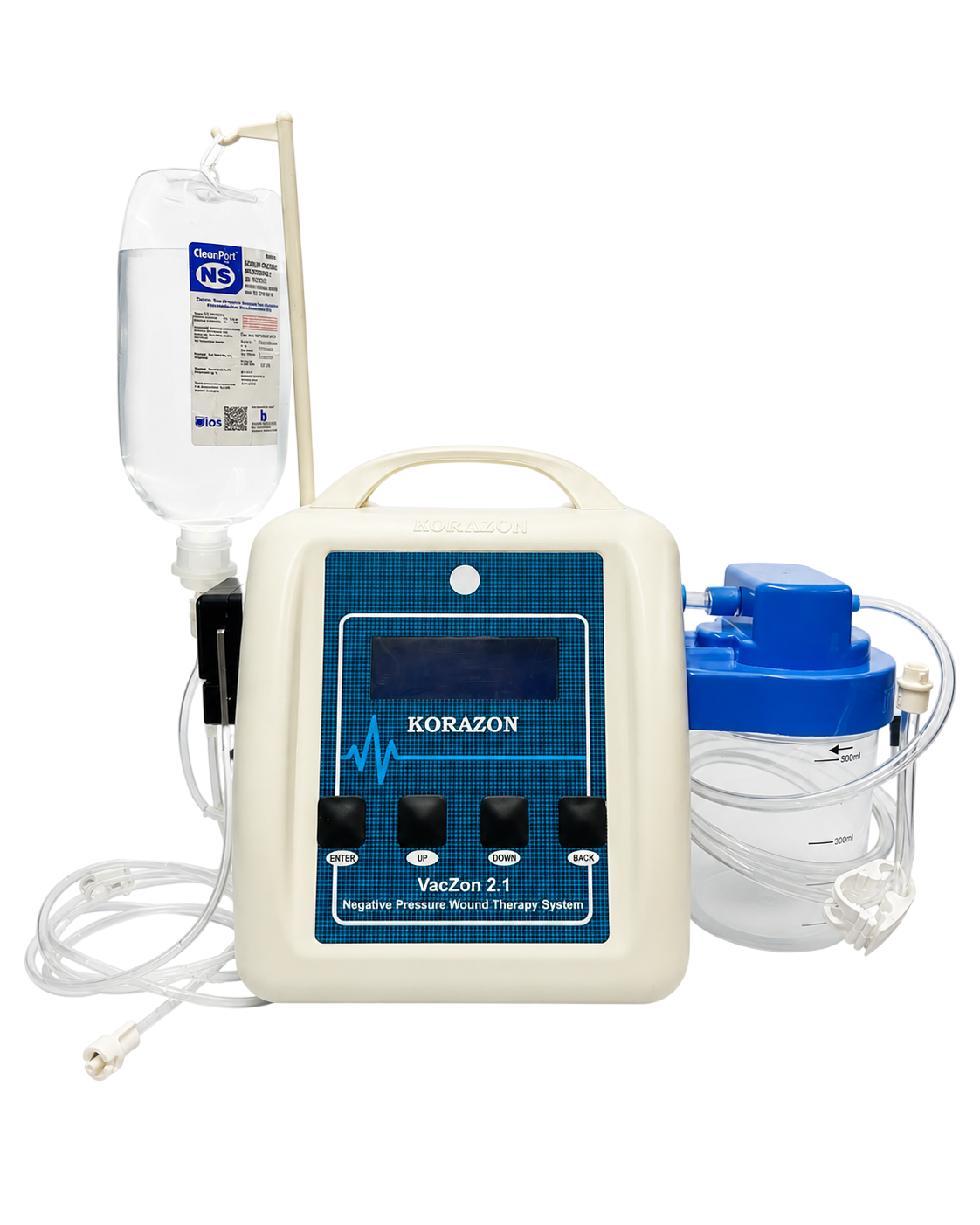

VacZon 2.1 – NPWT System
VacZon 2.1 – NPWT system is a portable, battery powered device which may promote wound healing through the drainage and removal of wound exudate, healing inhibitors, infectious material and tissue debris from wound bed using continuous and/or intermittent negative/ sub atmospheric pressure, maintains moist wound environment, stimulates angiogenesis and granulation tissue and causes mechanical stress in the bed of wound promoting cell proliferation.

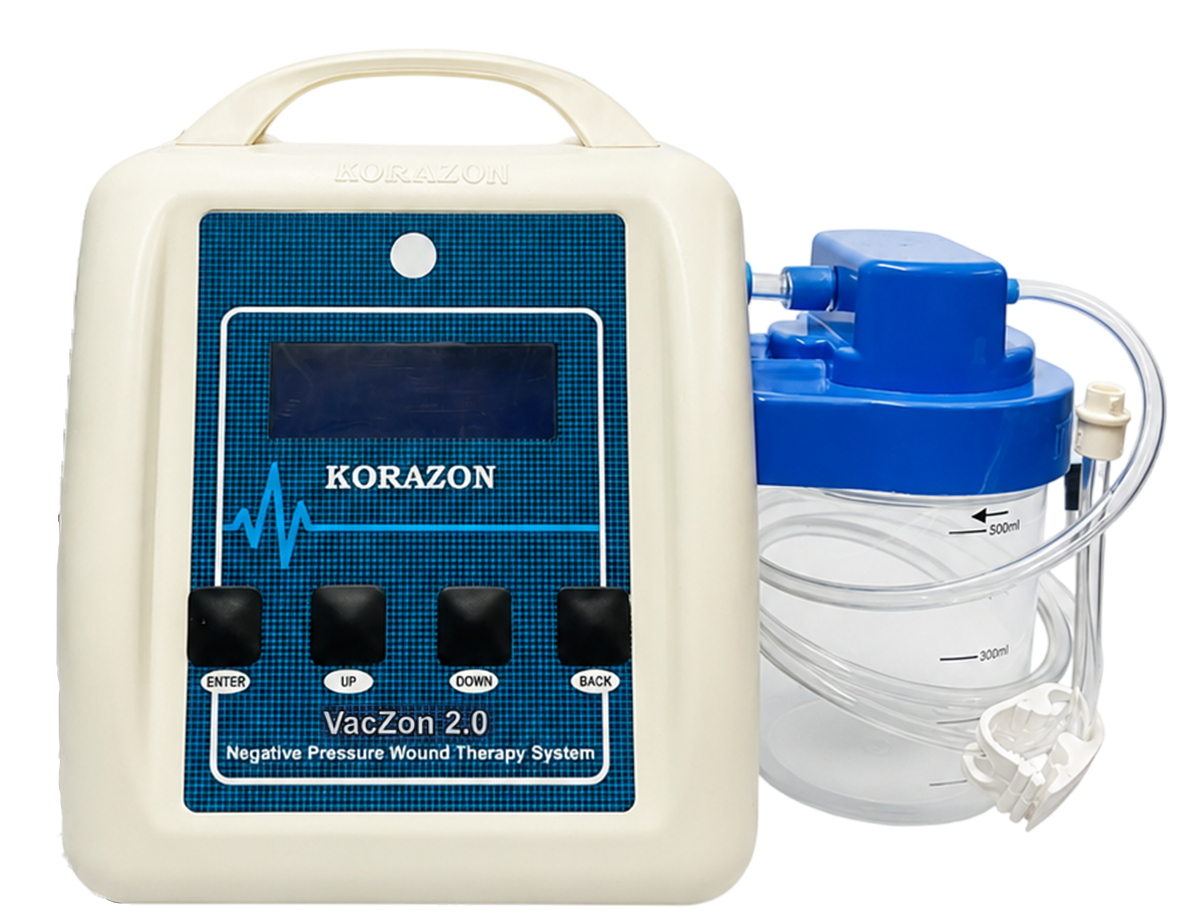

VacZon 2.0 – NPWT System
Negative Pressure Wound Therapy System features an intelligent and intuitive software operated high capacity device that provides clinicians even pressure distribution across the wound, prompting faster healing.
KEY FEATURES
- LCD Screen, intuitive user interface and easy pressure setting (-40 to -240 mmHg)
- Sophisticated touch screen with irrigation system (Optional).
- Continuous and intermittent mode
- Alarms leakage, canister full, canister installation error, low battery, blockage.
- Battery run time > 10 hours.
- Discreet 500ml Disposable Canister Variants with solidifying Agent.
- Carrying case for easy mobility.
- Virtually silent operation.
- Weight:4.6 lbs (2.1 kg)
- Power Adapter: Input: 110/220 VAC, Output: 12V/5 Amp
- Pressure Options: -40 to -240 mmHg
- Noise Level: < 30 db
